How to Wire a Daisy Chain for Tank Cloud Sensors

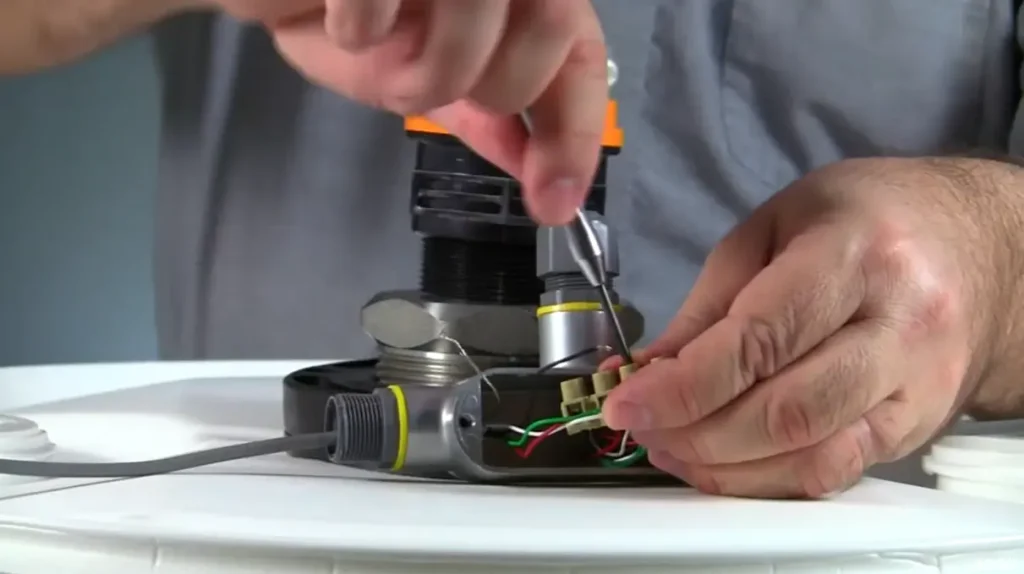

This video shows the process of wiring a Daisy Chain for Tank Cloud Sensors.

Transcript:

“A daisy chain is an effective way to reduce both installation and long-term data costs for remote tank level monitoring. This is done by limiting the wiring to a single cable run and by allowing you to network several sensors to one internet connection—not to mention how easy it is.

To wire a daisy chain, all you need is a shielded twisted pair cable, a junction box with wiring terminals for each sensor, and a 120-ohm terminating resistor. Simply match the lead wires by color in the junction box. Make sure that the drain wires lead to a single ground, and then repeat this process for each sensor along the chain. Finally, place a 120-ohm terminator resistor on the signal wires at both extreme ends of the daisy chain.
