Din Mounted Digital Display

DDD

DESCRIPTION
Features

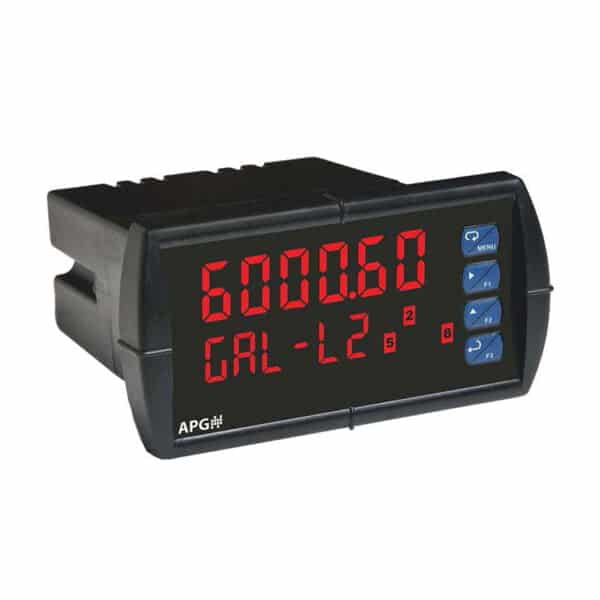

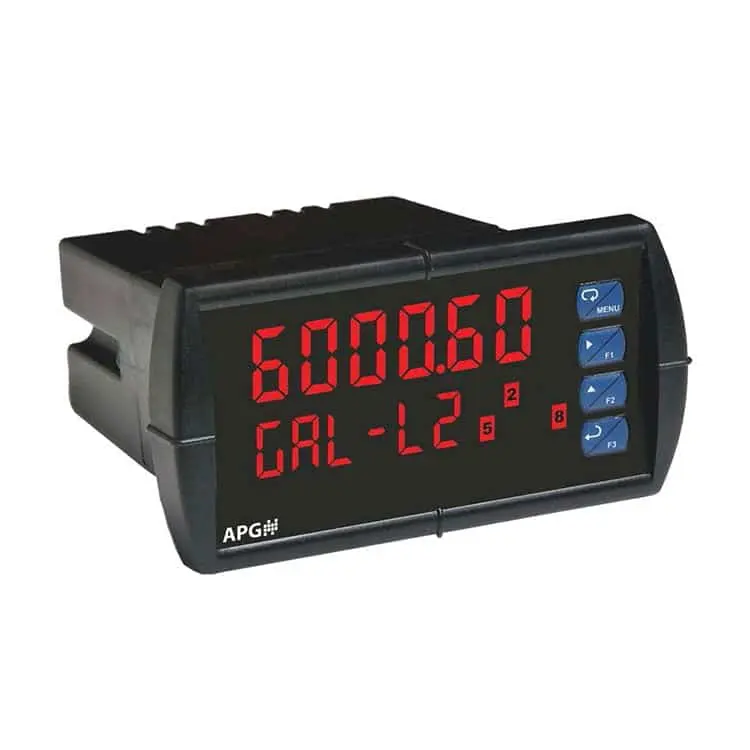

Dual-Line 6-Digit Process Meter

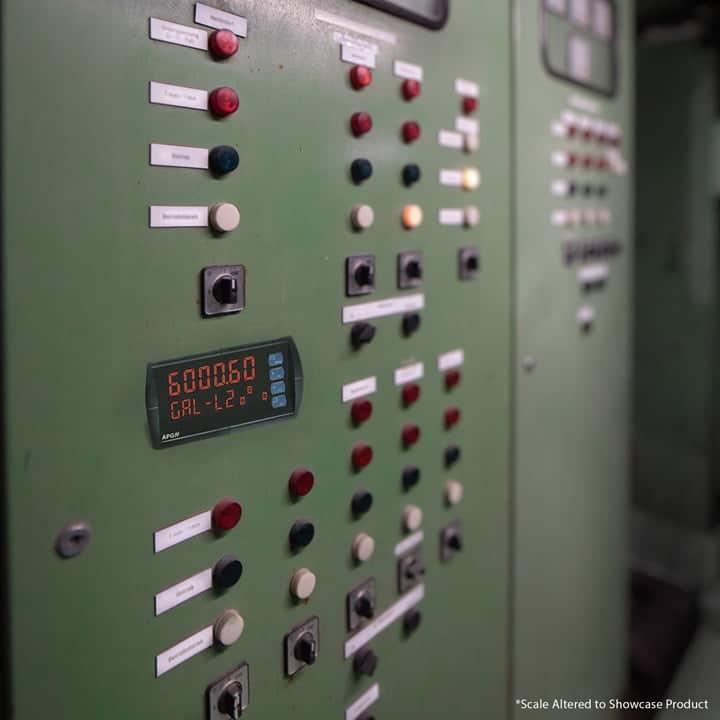

The Dual-Line 6-Digit Process Meter (DDD Series) features a large, bright dual-line display with .6″ digits. Designed for high-accuracy industrial measurement, it supports field-selectable inputs (0-20 mA, 4-20 mA, 0-5 V, 1-5V, ±10 V) with 0.03% accuracy. Built for rugged, outdoor environments, its NEMA 4X, IP65-rated enclosure ensures durability in extreme temperatures (-40°C to 65°C). A built-in 24 VDC isolated transmitter power supply eliminates the need for external power, simplifying wiring.

Clear Readability: 2-line, 6-character display
Rugged Protection: Environmentally sealed face; NEMA 4X / IP65
User-Friendly Setup: Easy 4-button programming
Reliable Senor Power: Up to 200 mA for powering sensor
Customizable Alerts: Configurable High/Low alarms
Optimized Pump Management: Alternating Pump Control (with output relays)
Enhanced Visibility: Optional bright display (DBD model)

Model *

DD - Din Mount Digital Display

BD - Din Mount Bright Digital Display

Input Power *

A - 85–265 VAC

D - 12–24 VDC

Analog Output *

0 - No Analog Output

1 - 4-20 mA Output

Output SPDT Relays *

0 - No Relays

2 - 2 Relays

4 - 4 Relays

Configured Model Number

Product total

Options total

Grand total

ⓘ

Description
Additional information

DDD
Datasheet

DDD
User Manual

APG Digital Display
Modbus Register Guide

EU Declaration of
Conformity

Specifications

Please refer to the DDD Datasheet for specification details.

What input types does the meter support?

The meter supports field-selectable inputs, including 0-20 mA, 4-20 mA, 0-5 V, and ±10 V, offering high flexibility for various industrial measurement applications.

What is the accuracy of the meter?

The DDD Series offers an impressive accuracy of 0.03%, ensuring reliable and precise readings for industrial measurement tasks.

Can the meter be used outdoors?

Yes, the DDD Series is designed for rugged outdoor environments. It features a NEMA 4X, IP65-rated enclosure, providing protection against dust and water, and is built to withstand extreme temperatures ranging from -40°C to 65°C.

Does the meter require an external power source?

No, the DDD Series includes a built-in 24 VDC isolated transmitter power supply, eliminating the need for an external power source and simplifying wiring.

What software is available for programming and monitoring?

The DDD Series is compatible with MeterView Pro Software, a free, PC-based software that allows for easy programming, monitoring, and data logging via USB.

OUTPUT	2 Relays, 4 Relays, 4-20 mA
MOUNT	Din Rail, Panel Mount
INPUT	0-20 mA, 4-20 mA, Voltage
ENCLOSURE PROTECTION	IP65, NEMA 4X
INDUSTRY	Chemical, Food & Beverage, Industrial Automation, Marine, Water & Wastewater
CERTIFICATION	CE, UL

WARRANTY

APG warrants its products to be free from defects in material and workmanship under normal use and service of the product for 24 months from the date of shipment from APG, unless otherwise specified by APG in writing. Read our full warranty policy HERE.

RETURNS

Returns and allowances must be authorized by APG in advance, which authorization may be granted or withheld by APG in APG’s sole and absolute discretion. Read our full return policy HERE.
