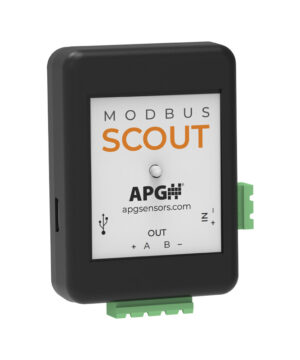

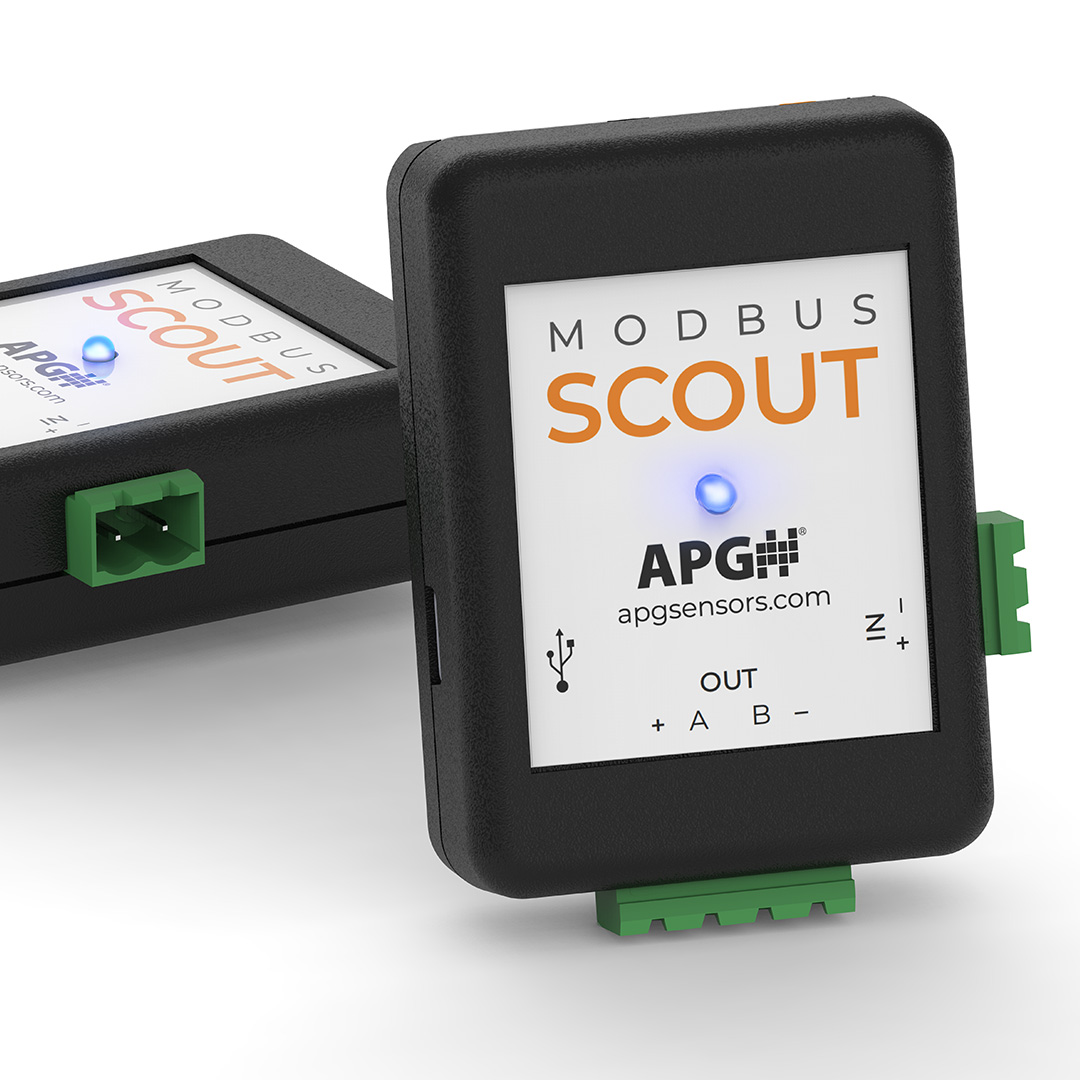

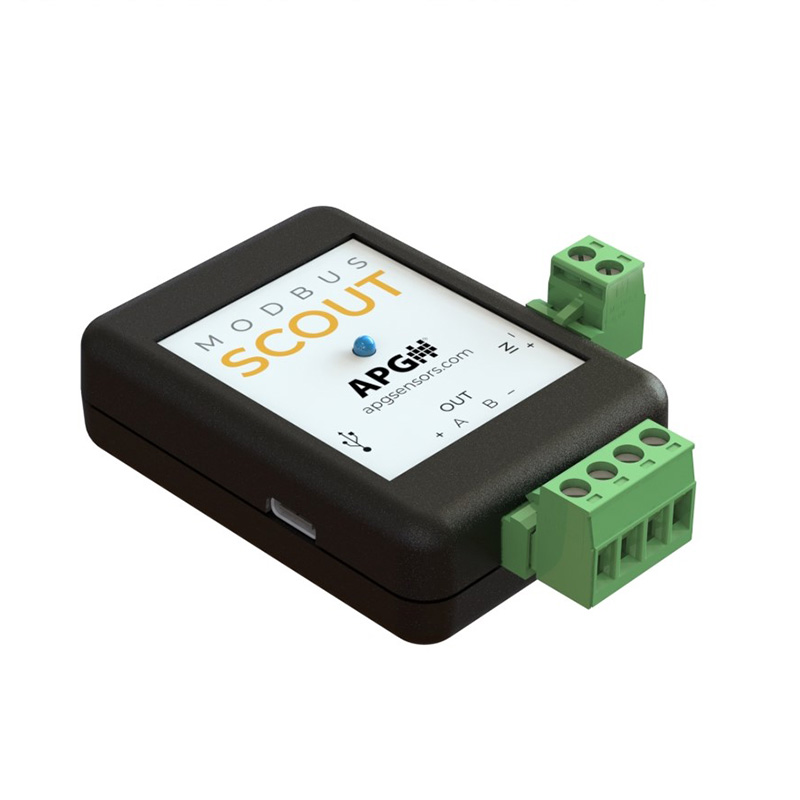

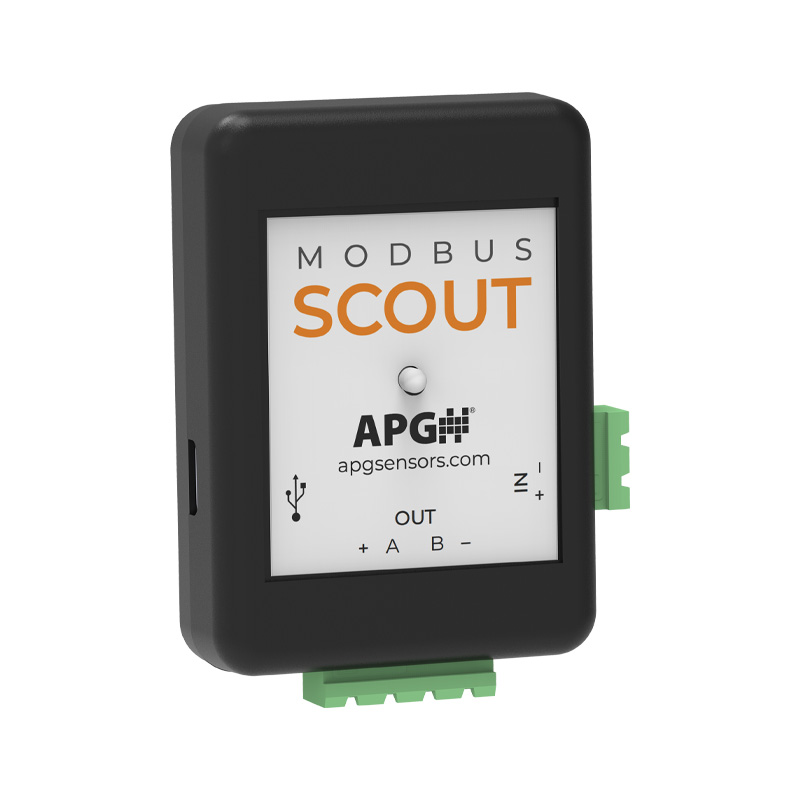

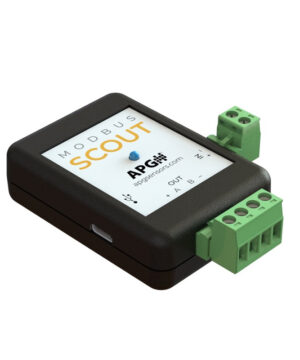

Modbus Scout

Modbus Scout

SCT-1

PORTABLE RS485 MODBUS COMMUNICATOR

Modbus Scout is a portable RS485 Modbus communication device. The simple design allows users to connect to their Modbus sensor in the field via an easy-to-use app or a convenient USB port. Additionally, Modbus Scout can broadcast simple readings to the app, so users can quickly check the status of several devices within range at once.

EFFORTLESS MODBUS COMMUNICATION

Streamline field diagnostics with Modbus Scout, the portable and user-friendly RS485 Modbus communication tool. Designed for quick and easy sensor connectivity, Modbus Scout allows users to interface with their Modbus devices via Bluetooth or USB. With the APG Scout Communicator app, configuration is simple—whether in the field or at a workstation. The broadcast mode provides instant readings from multiple sensors within range, ensuring seamless monitoring at a glance. Compact and convenient, Modbus Scout is the ultimate solution for on-the-go Modbus communication.



SEAMLESS DEVICE CONNECTIVITY

With cross-platform compatibility, Modbus Scout connects effortlessly to Windows, Android, Mac, and iOS devices, making sensor configuration and data retrieval more accessible than ever. Whether you're in the field or at your workstation, the APG Scout Communicator app provides an intuitive interface for quick setup, real-time monitoring, and troubleshooting.



KEY FEATURES AT A GLANCE

  • Effortless Sensor Configuration—Configure Modbus sensors via APG Scout Communicator app
  • Wireless & Wired Connectivity—Bluetooth connectivity and USB communication options
  • Portable and Convenient—Portable size allows for convenient setup anywhere
  • Multi-Device Monitoring—Broadcast mode to check multiple device readings within range
  • Cross-Platform Compatibility—Connect to the APP on Windows, Android, Mac, and IOS devices
  • Industrial Automation
  • Remote Monitoring
  • IoT Deployments
  • Smart Agriculture
Physical
  •  Material
    • ABS
  • Weight
    • 1.5 oz (45 g)
  • External Dimensions
    • 3.30 x 2.56 x 0.95
    • 83.82 x 65.02 x 24.13 mm
Electrical
  •  Power In
    • 2-Pin Connector 8 to 30 VDC, 3 Amp max
    • USB C
  • Power Out (to 4-Pin Modbus Connector)
    • 2-Pin Connector: Output ≈ Input*
    • USB C: 24 VDC (internal limit 70 mA)
Environmental
  •  Operating Temperature
    • 0 to 140° F (-18 to 60° C)
Connectivity
  •  Interfaces
    • Bluetooth connectivity via APG Scout Communicator app
    • USB connectivity via APG Scout Communicator app
    • USB connectivity via virtual COM port
  • LED Indicator
    • Bluetooth connection status
  • Broadcast Range
    • Approximately 33 ft (10 m)
