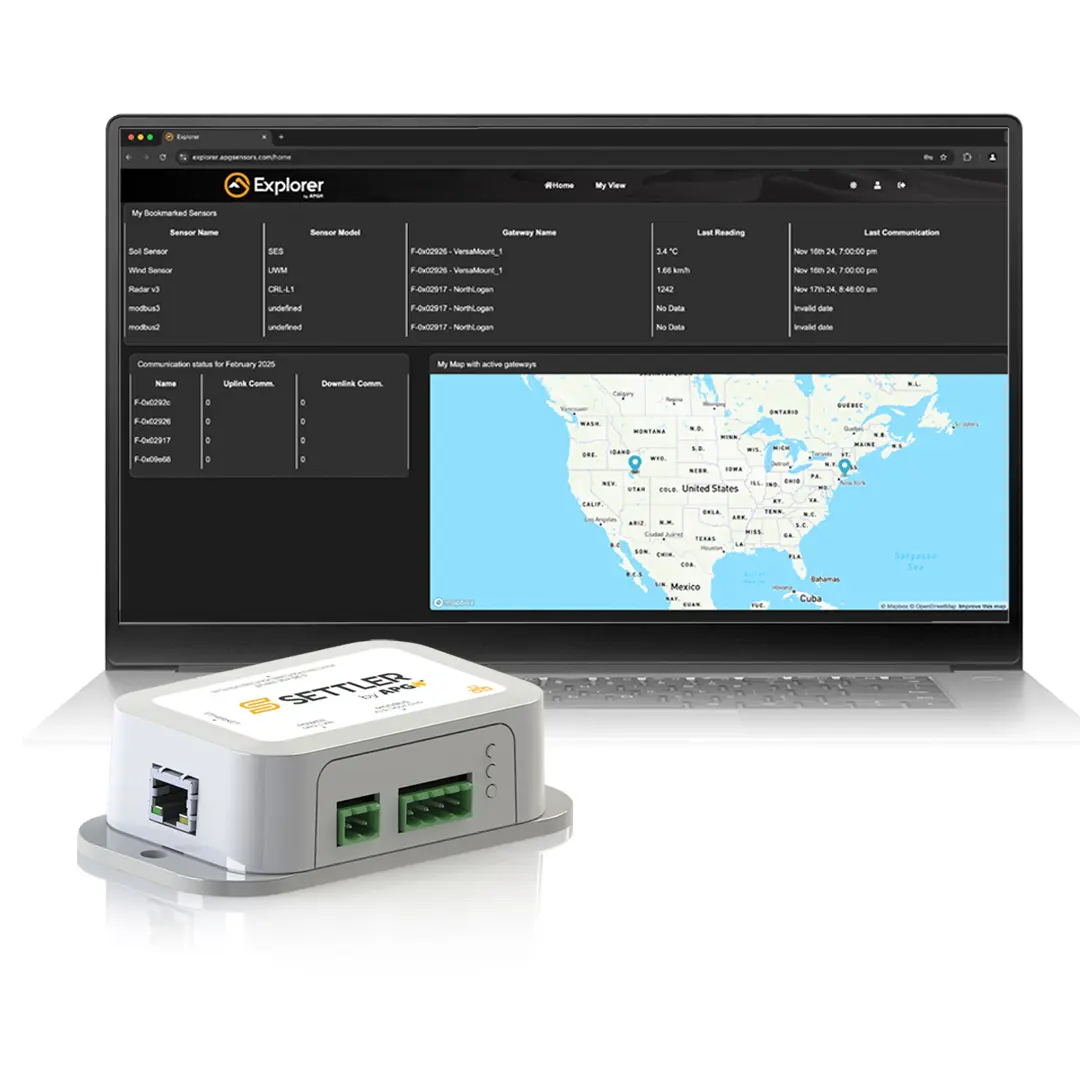

Settler and Explorer Remote Monitoring Setup

Remote Monitoring Gateway

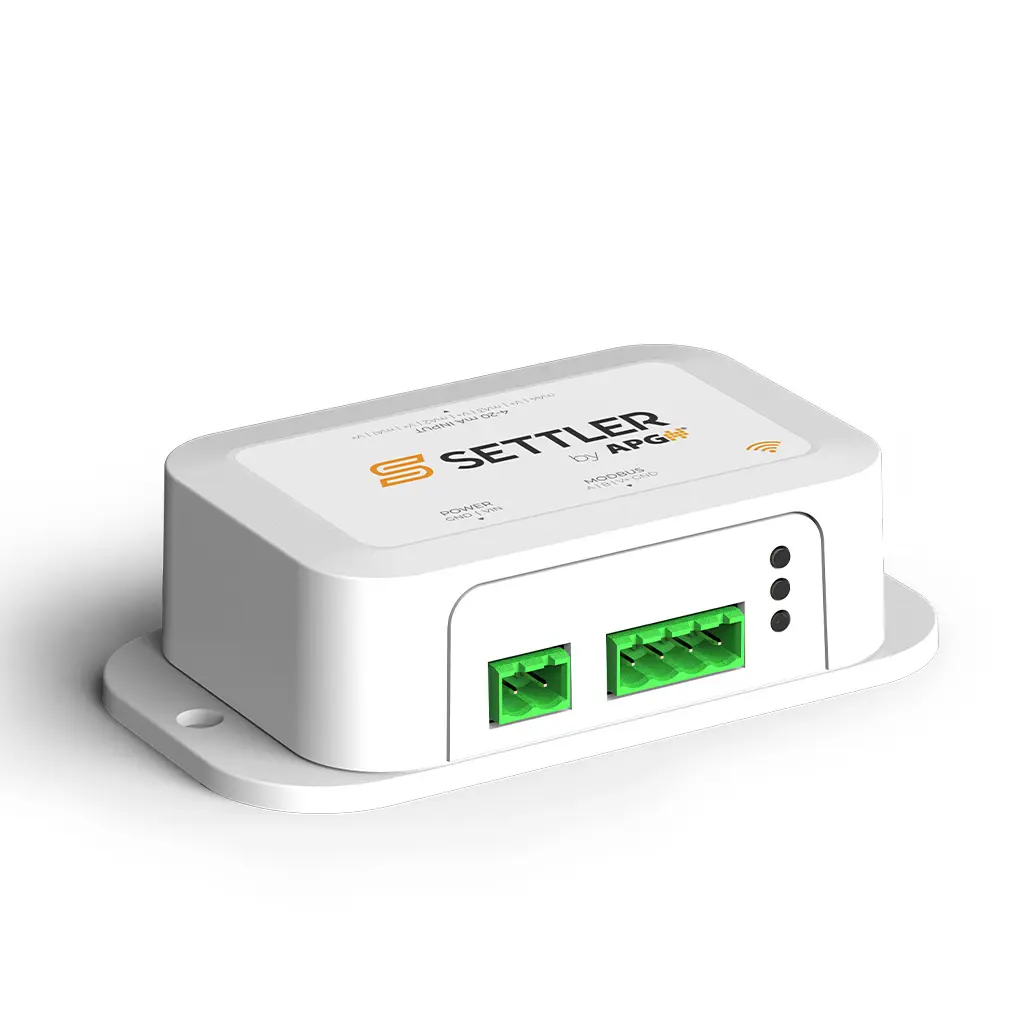

Settler

DESCRIPTION
Features

Reliable Remote Monitoring

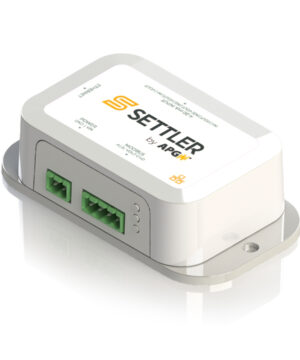

Take control of your data with Settler, a compact and powerful gateway designed for seamless sensor connectivity. Supporting multiple 4–20 mA and Modbus RS485 sensors in one single device, Settler collects and securely transmits data via MQTT with AES encryption to Explorer—APG’s cloud-based monitoring platform—ensuring safe, reliable remote monitoring.

With Ethernet, Wi-Fi, and PoE connectivity, Settler offers flexible integration and simple setup, making it a cost-effective solution for applications that need reliable data without the expense and complexity of a traditional SCADA system.

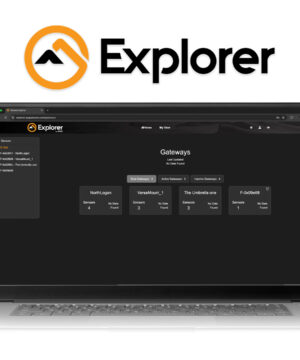

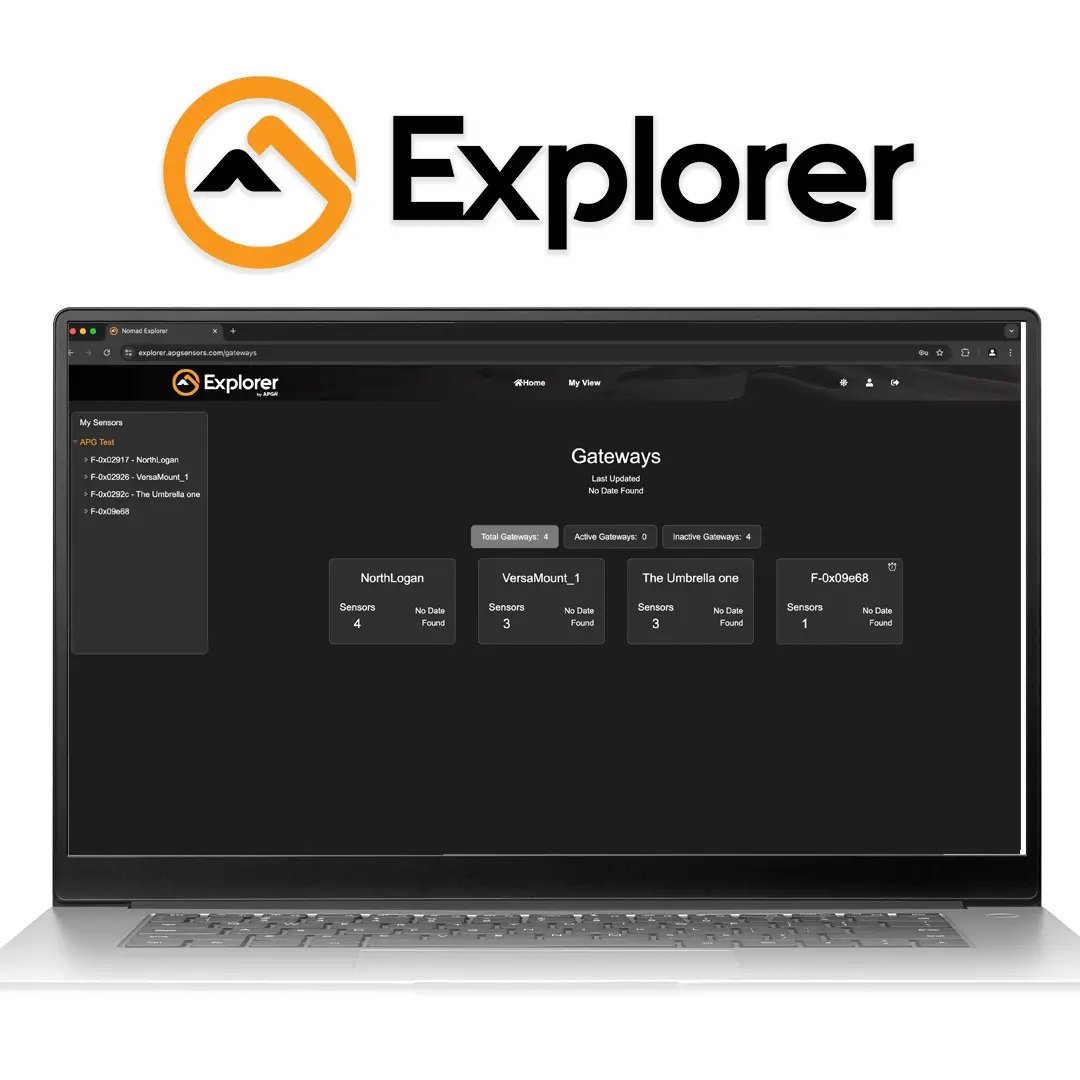

Intuitive Monitoring with Explorer

Explorer is APG’s cloud-based platform that displays and organizes data collected by Settler, giving you clear visibility into your operations from anywhere. Access real-time data, track trends with built-in data logging, and stay informed with customizable email and SMS alerts.

Choose from our Standard free tier or our Advanced tier. With optional predictive AI add-on, Explorer goes beyond visibility—helping you identify patterns, anticipate issues, and turn your data into actionable insights, all through an intuitive, easy-to-use interface.

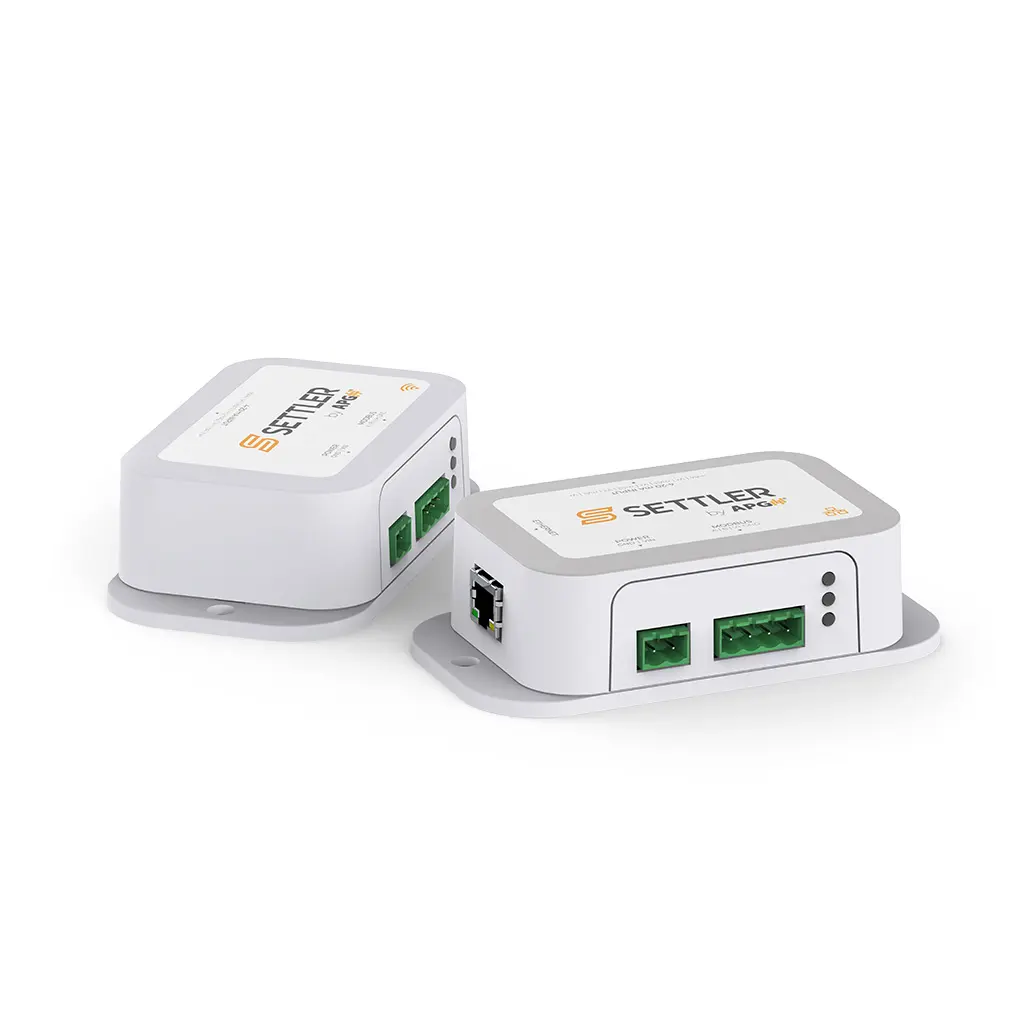

Flexible Connectivity Options: Ethernet, Wi-Fi, and PoE options give you the freedom to connect wherever your application requires.
Multi-Sensor Integration: Connect and collect data from multiple 4–20mA and Modbus sensors through a single Settler device.
Secure Data Transmission: Reliably transmit data using MQTT with AES encryption for safe and consistent remote monitoring.
Real-Time Data Visualization: Explorer displays live sensor data, trends, and alerts in an intuitive, easy-to-use interface.
Remote Ready: OTA (Over-the-Air) updates for remote firmware management
Predictive AI Insights: Unlock predictive analytics with Explorer's AI add-on to identify patterns, anticipate issues, and drive smarter decisions.

Connectivity *

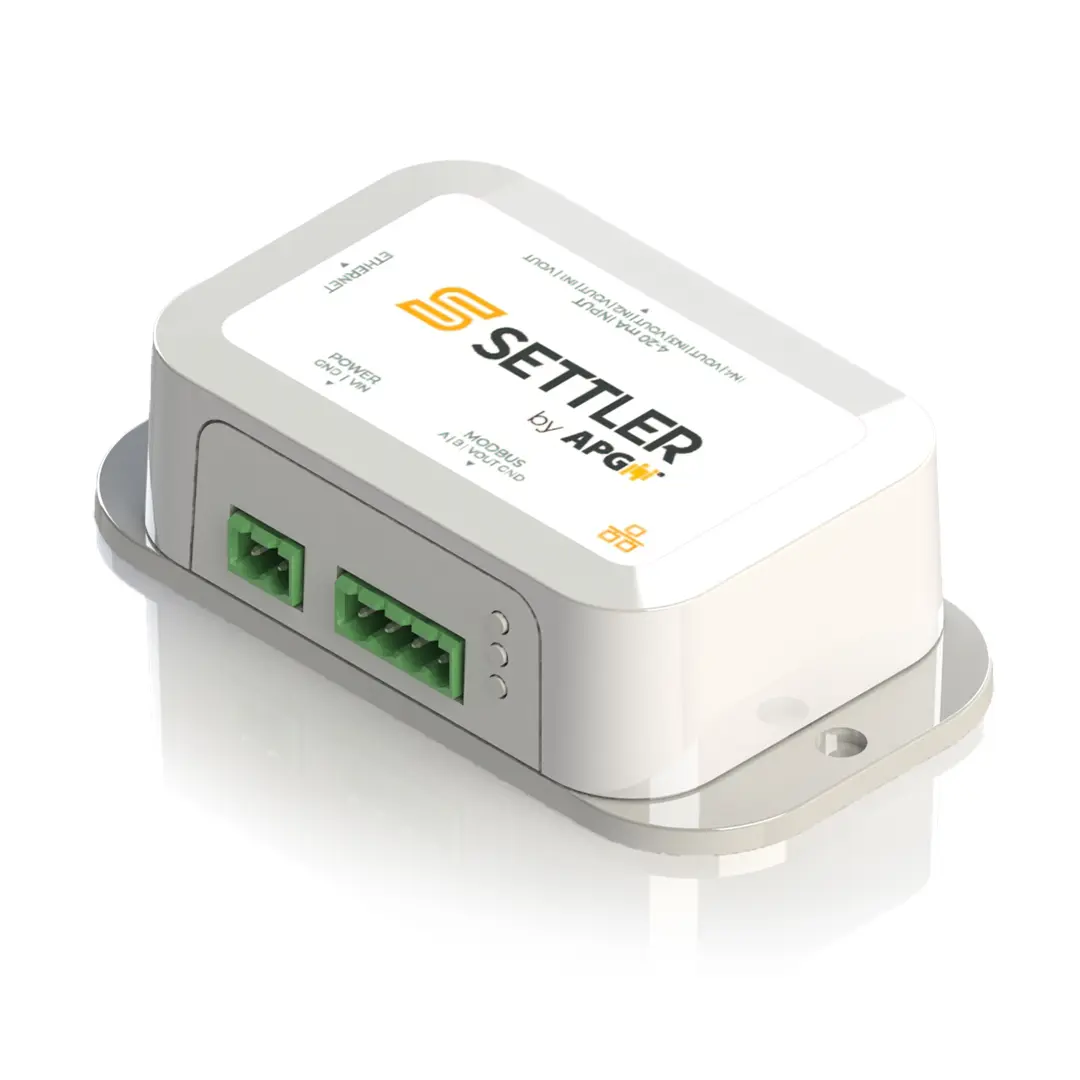

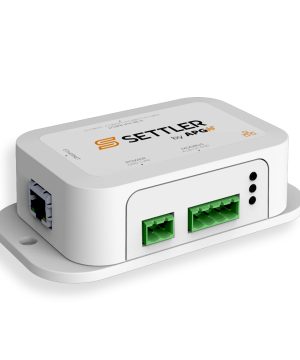

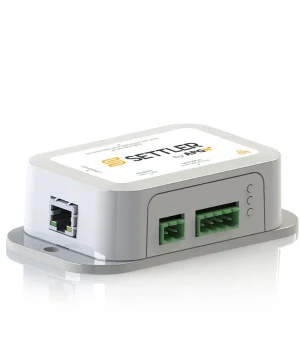

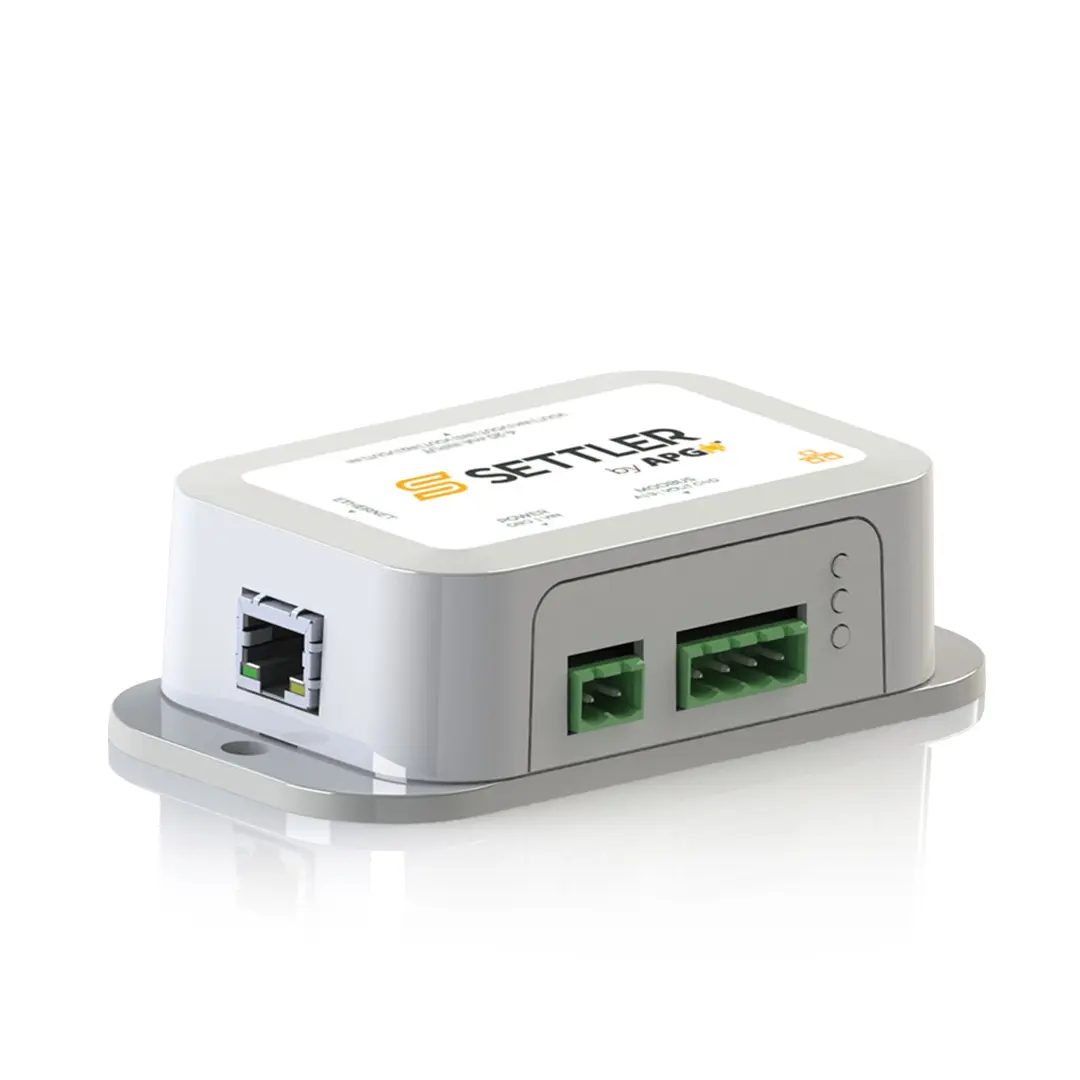

Ethernet

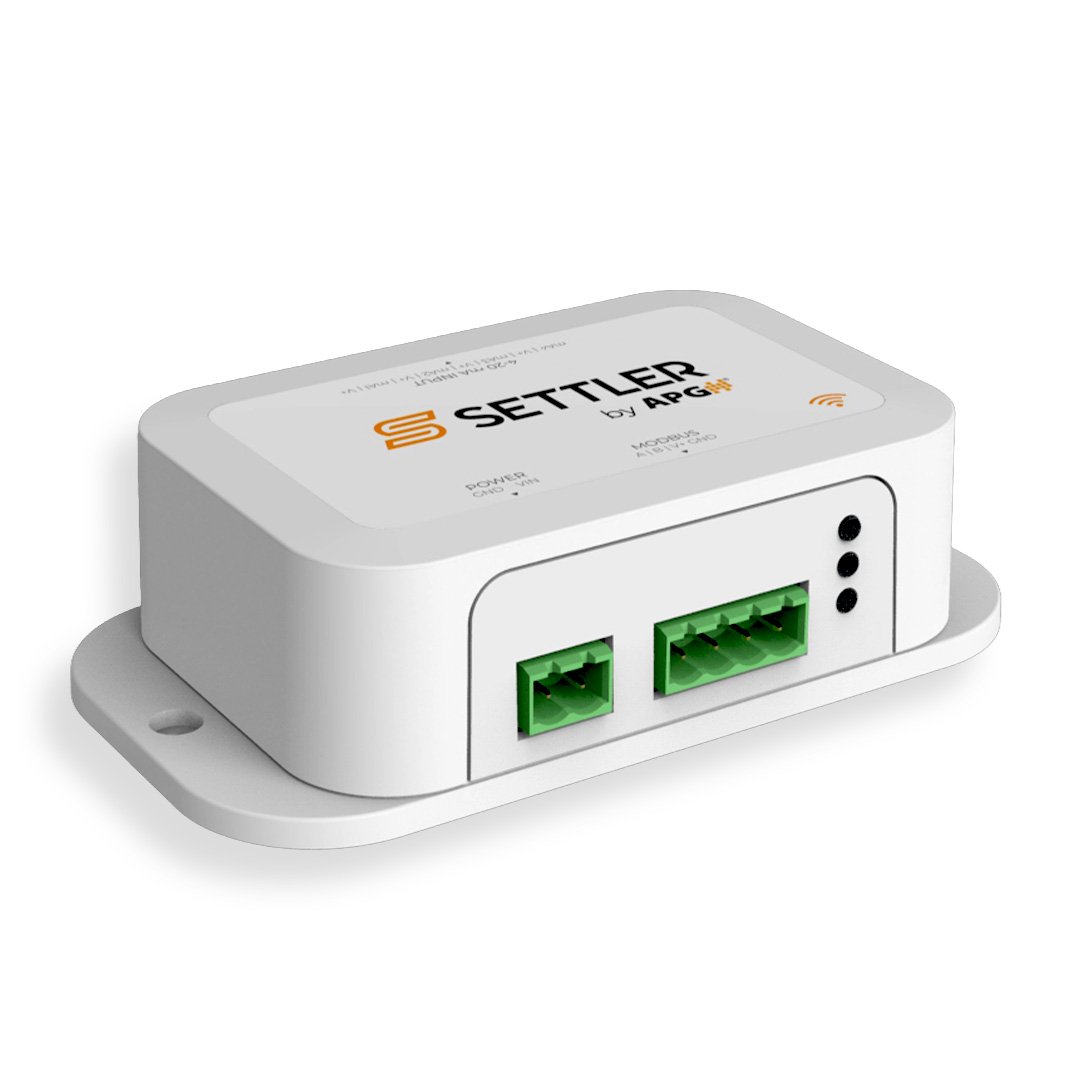

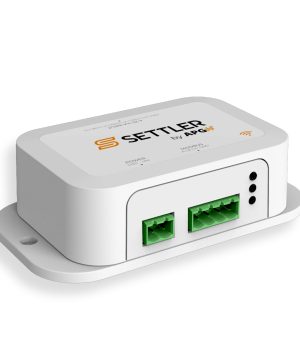

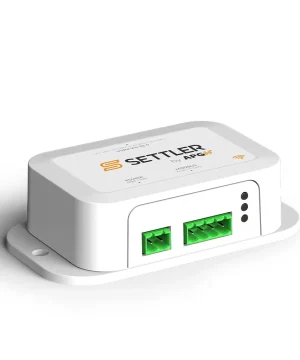

WiFi

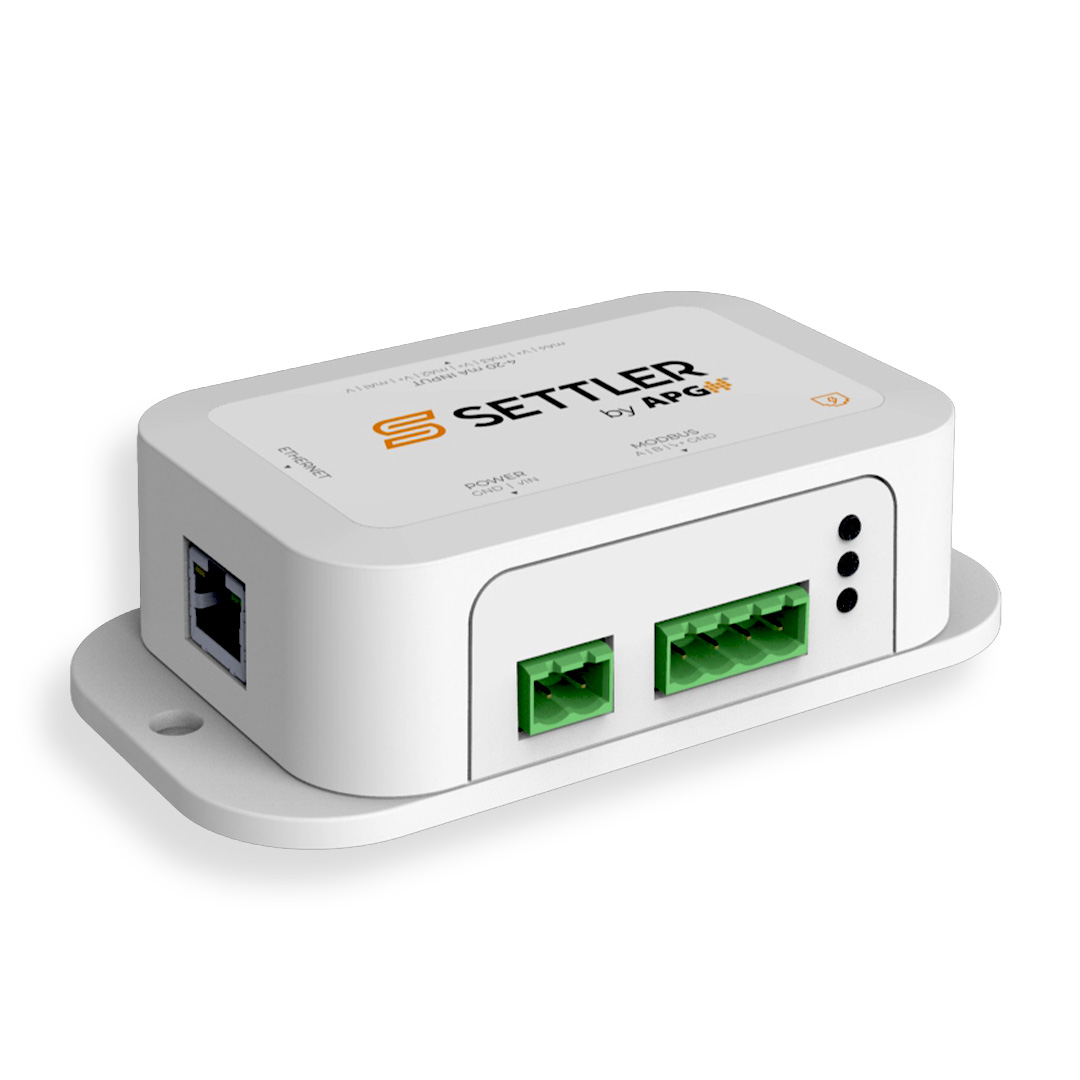

PoE (Power over Ethernet)

Explorer Subscription Tier *

Basic - Basic Subscription (Free)

Advanced - Advanced Subscription ($125/year)

Explorer Subscription Add-Ons *

N - None

AI - AI Prediction ($60/year)

Configured Model Number

Product total

Options total

Grand total

ⓘ

Description
Additional information

Settler Datasheet

Explorer Browser

Settler User Manual

Settler Install Guide

Explorer User Manual

Environmental

Operating Temperature: -20° to 85°C (-4° to 185°F)
Humidity: 5% to 95% non-condensing
Environmental Protection: IP40

Electrical

Power Supply:
- 5 to 32 VDC
- 10 mA at 24V

Connectivity

Input/Output:
- Modbus RS485 input
- 4x 4-20 mA analog inputs (active loop power provided)
Protocols & Security:
- MQTT with AES encryption (End-to-End)
- Over-the-Air (OTA) Firmware Updates: Enabled

Physical

External Dimensions:
- Length: 124.3 mm
- Height: 35.0 mm
- Depth: 67.3 mm
Mounting Option: Flanges allowing DIN rail mounting

How does Settler transmit data securely?

Settler uses MQTT with AES encryption to securely send data to APG’s cloud-based Explorer platform, ensuring reliable and protected communication.

Does Settler only work with APG sensors?

No, Settler is compatible with any 4-20 mA or Modbus RS485 sensor, not just APG sensors. It can connect to a wide range of industrial sensors, making it a flexible solution for various monitoring applications.

Does my sensor need external power when using Settler?

No, external power is not needed. Settler supplies power to the sensors using whatever voltage you provide. It supports a wide DC voltage range from 5V to 32V. If your sensor requires 24V, simply supply 24V to Settler, and it will handle the rest!

How easy is it to configure Settler?

Very easy! Explorer includes a wizard that makes configuring your Settler a breeze. Simply follow the step-by-step guide to set up reading registers, alarms, notifications, and more with ease! Navigate to the “Explorer User Manual” under “Product Documentation” for further instruction.

How do I monitor my sensors with Settler?

To monitor your sensors with Settler, you’ll need an Explorer account. Settler securely transmits sensor data to Explorer, APG’s cloud-based platform, where you can view real-time readings, set alarms, and manage your sensors remotely. Without Explorer, the data from Settler would not be accessible for monitoring or analysis.

MOUNT	Din Rail, Flange
OUTPUT	4-20 mA, Modbus, Remote Monitoring
RANGE	1' – 15', 1' – 50', 16' – 30', 31' – 50'
INPUT	4-20 mA, Modbus
INDUSTRY	Carwash Automation, Chemical, Food & Beverage, Industrial Automation, Marine, Oil & Gas, Water & Wastewater
ENCLOSURE PROTECTION	IP40
